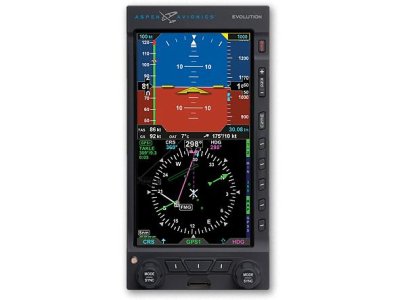

Aspen EFD1000H Pro PFD System – Bell 206 Helicopter PFD System

Features

• Special vibration mount meets DO-160F helicopter vibration standards.
• Airspeed and altitude tapes, with altitude alerter (and separate approach minimums alerting)
• Built-in GPS Steering(1)
• Full electronic HSI with dual bearing pointers
• Base map with flight plan legs and waypoints, curved flight paths(1), and nearby navaids
• Integral Air Data Computer and Attitude Heading Reference System (ADAHRS)
• Built-in backup battery
• Optional EHA upgrade provides traffic and weather displays(2, 3)
• Advanced EFIS six-pack replacement

Specifications

General Specifications:

• Overall Dimensions: 3.50” W x 7.00”H x 4.15”D
• Weight: 2.9 lbs. with mounting bracket
• Display Type: 6.0” Diagonal TFT Active Matrix LCD
• Display Resolution: 400×760
• Display Backlight: High Intensity White LED
• Display Colors: 32,768

Operational Specifications:

• Operating Temp: -20°C to +55°C
• Storage Temp: -55°C to +85°C
• Max Operating Altitude (unpress.): 35,000 ft.
• Cooling: Integral Fan
• Max Humidity: 95% at 50°C
• Input Voltage: +8 to +32 Volts DC
• Max Current: 2.4 Amps @ 28 Vdc / 4.8 Amps @ 14 Vdc

I/O Specifications:

• ARINC 429 Inputs: 5 Low Speed
• ARINC 429 Outputs: 1 Low Speed
• RS-232 Inputs: 5
• RS-232 Outputs: 3
• Pitot / Static: Quick Connect

Certification Specifications:

• FAA and EASA Technical Standard Orders: TSO/ETSO: C2D, C3D, C4C, C6D, C8D, C10B, C106, C113
• Software: RTCA DO-178B Level B
• Environmental: RTCA DO-160E
• Categories: See Environmental Qualification Sheet
