AvMap EKP V Portable GPS

AvMap presents EKP V the next step in the evolution of aeronautical GPS, redefining the role of the GPS inside the cockpit.

Fully Portable
A brilliant 7” display, with built-in battery and GPS, only 0.8” thick.

Fully Customizable

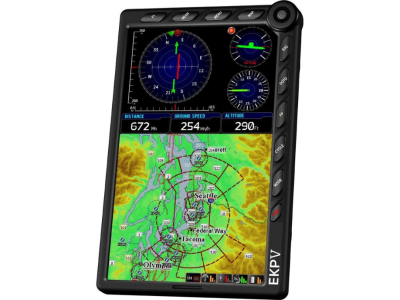

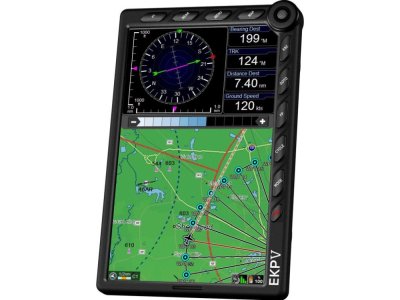

Easily change the layout choosing what to see and where to display it: maps, taws, weather, vertical profile on map, nav data, HSI, EFIS

Full connectivity
With the special docking station EKP V is capable to connect all your devices at the same time.

User Friendly
New intuitive interface, Full QWERTY virtual Keyboard, New Joystick + smart wheel

Connectivity

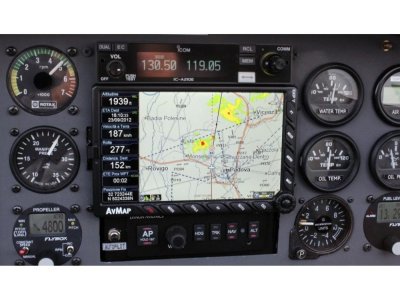

Thanks to the special Docking Station, you can connect EKP V to several on-board devices at the same time (autopilot, XM WX, CAS, EIS, EFIS etc.) so that the large 7” LCD becomes multifunctional and capable to display different flight info.

Slim and light, yet very powerful
EKP V comes with built in u-blox 5 GPS receiver, built-in battery and speaker. The practical keyboard includes a configurable key, a new progressive jostick and a smart wheel selector. Ease of use ensured by the new graphic interface and the full QWERTY virtual keyboard.

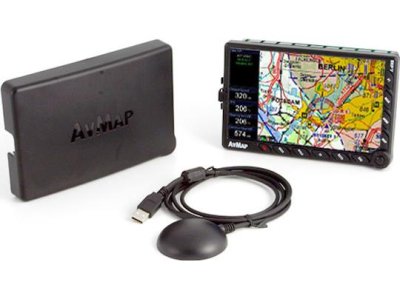

Includes:Plastic Knee-pad bracket, Knee strap, Interface Cable, Power Cable, Power Supply Adapter, Quick Start Guide

Maps

• Worldwide background
• Jeppesen database
• TAWS
• Obstacles data
• Low Airways
• Private Airports
• Approach plates

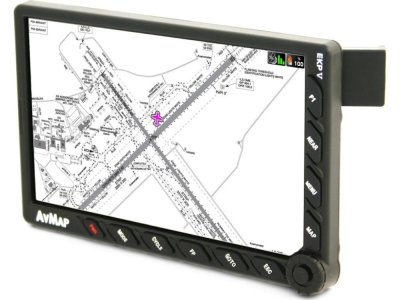

• Airport Diagrams

Hardware

• Dimensions: 110mm x 172mm x 21mm
• Weight: 400 g
• Display size: 7” (16:9) 4.75” x 7” x 1.5”
• Display type: Color LCD TFT
• Display resolution: 800 x 480 pixels
• Keyboard with 10 keys with F1 configurable key
• Progressive Joystick + smart wheel selector
• GPS receiver: built-in u-blox 5 high sensitivity with WAAS position accuracy
• RAM: 512 MB
• Memory Support: Micro SD preloaded with software and maps
• Black Box function: last 10 minutes flight data record
• Power supply: external 10/35 V DC with cable adapter
• Battery: removable, rechargeable lithium-Ion
• Consumption: max 10 Watt
• Speaker
• USB OTG master / slave

Docking Station

• For panel mount with 2 serial ports and 1 USB OTG master / slave
• Audio Video input
• Audio output

Software Features

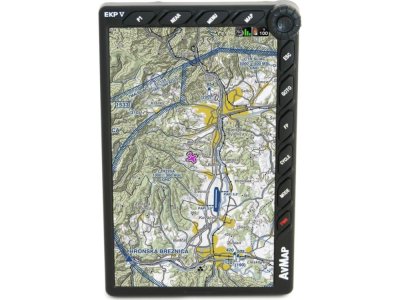

• Horizontal / Vertical view
• Night Vision
• Vertical profile on map
• Flight plan vertical profile: you can set the waypoints altitude
• Full flight planning capability (up to 15 flight plans of up to 100 legs each)
• Editable aircraft checklist
• Full simulator functions

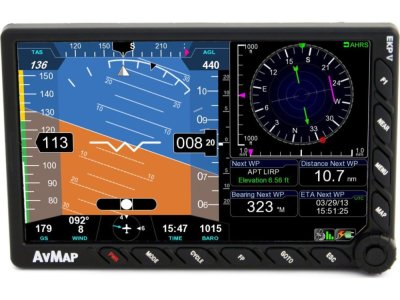

• Fully customizable display: choose what to see and where! TAWS, weather, vertical profile, nav data, HIS, EFIS (GPS based).
