AvMap Ultra EFIS EFIS

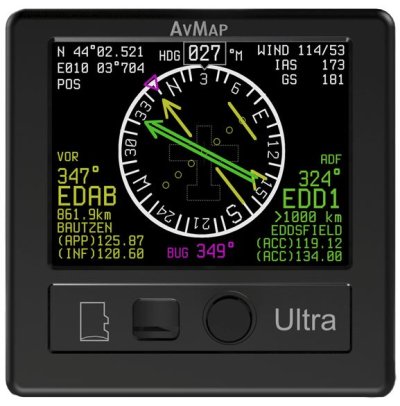

AvMap Ultra is a stand alone EFIS with a 3.5” ultra bright LCD display. The unit is compact (only 63.3 mm /2.49” of installing depth) and ultra light: only 230 g (8.1 Oz)

Ultra powerful, packed with everything you need

• 3.5” ultra bright LCD
• GPS
• Solid state 3-axis gyro
• 3-axis accelerometer
• 3-axis magnetic field sensor
• Pitot and Static air data sensors
• UAV motion processor and sensor fusion software
• Preloaded with Jeppesen database (APT, VOR, NDB)

Your Navigation back-up!

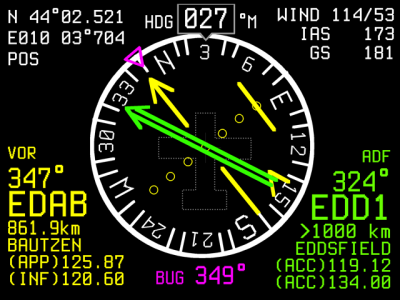

The AvMap Ultra also provides navigation back-up: in the HSI screen you can select from the preloaded Jeppesen Database an Airport, a VOR station or NDB transmitter as your navigation point.

The Ultra EFIS contains an internal world magnetic model that allows it to calculate the local magnetic deviation and dip. The Ultra EFIS can calculate current position and ground speed even in the absence of GPS.
