Garmin GTN 725Xi Touchscreen GPS/MFD

€14,899.00

Category: GPS

Description
Reviews (0)

Elevate Your Flight with the GTN 725Xi

Smarter, Faster Avionics Redefined” Introducing the GTN 725Xi, a new generation of faster, smarter avionics that enhances the industry’s leading GPS/Nav/Comm/MFD platform with more pixels, greater processing power, and enhanced speed and performance. Visualize your entire flight plan, including holds and approaches, on a large 6.9″ touch display, while high-speed processors reduce boot-up time by 50% compared to earlier GTN models. The GTN 725Xi allows you to fly the approaches you want, from visual glide paths to LPV, RNAV, ILS, and more, and is interface-friendly with a wide range of existing avionics, autopilots, and flight displays1. Additionally, wirelessly load flight plans and database updates with an optional Connext® link. For those considering an upgrade, the new GTN Xi series offers an easy slide-in installation for existing GTN avionics, making the transition to this advanced system seamless.

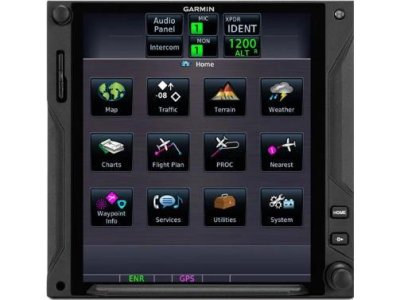

DO-IT-ALL TOUCHSCREEN – Intuitive touchscreen interface provides quick access to navigation, radio tuning, multifunction display features and more.
LIGHTNING-FAST RESPONSE – Powerful dual-core processors boost the GTN Xi series graphical display capabilities — with faster zooming, panning and map rendering on the display.
HIGH-RESOLUTION DISPLAY – With almost double the pixel count of its predecessor, the GTN Xi series features wider viewing angles and one of the highest-resolution displays ever offered in this class of avionics.
MULTIFUNCTION DISPLAY – Supporting multiple inputs, the 6.9” display can put moving maps, terrain, traffic, weather,airportdiagrams and more at your fingertips.
EASY DATA ENTRY – Use the on-screen QWERTY keyboard or traditional concentric knobs to enter frequencies, waypoint identifiers, routings and more.
TELL IT, TUNE IT – Available Telligence™ voice control technology helps reduce pilot workload by responding to hundreds of spoken commands with the press of a button on the yoke.
SPACE-SAVING AUDIO – To streamline your avionics stack, GTN 725Xi can double as the control panel for your audio system when it’s paired with one of Garmin’s GMA™ 35 remote audio units (sold separately).

AIRWAYS, YOUR WAY

This feature not only allows you to overlay Victor airways and high-altitude jet routes on the map for easy IFR routings, but also enables you to view airway segments available from a waypoint and their corresponding exit options for more streamlined planning. As soon as you start typing, the GTN Xi FastFind feature uses quick predictive logic to suggest airport and waypoint entries based on your current GPS position, enhancing efficiency and reducing input time. This integration of advanced technology and user-friendly design ensures that selecting your route is just a matter of selection and go, simplifying your navigational experience.

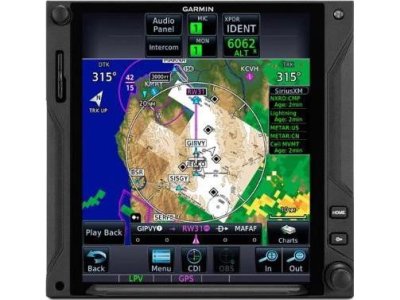

SEE THE FULL PICTURE – Graphical routing on the display lets you visualize your entire flight plan, including departures, arrivals, visual/instrument approaches, holding procedures and more.
“RUBBER BAND” REROUTES – This handy feature lets you grab a flight plan leg on the screen, and then stretch or move it to adjust for a deviation or ATC amendment to your flight plan.
VIRTUAL MAP TOPOGRAPHY – By referencing built-in terrain, mapping and obstacles databases, GTN 725Xi shows detailed surface features, cities, airports, SUAs and more on the dynamic map display.
TERRAIN ALERTING – A built-in database provides color-coded display overlays to warn when potential terrain conflicts loom ahead. Class A or B TAWS alerting is optionally available.
MORE APPROACH OPTIONS – The WAAS/SBAS-certified GPS receiver expands your landing options, enabling GPS-guided LPV glidepath approaches down to ILS-comparable minimums as low as 200’.
CLEARED FOR THE VISUAL – GTN Xi can give advisory visual approach guidance based on a published glidepath or a 3-degree slope from the runway threshold (with terrain/obstacle clearance).

VIEW CHARTS IN CONTEXT

Garmin’s standard FliteCharts® or optional Jeppesen® style ChartView™ plates provide georeferenced approaches and terminal procedures, enhancing your situational awareness and decision-making during critical phases of flight. The addition of a Direct-to key on the bezel allows for quick and efficient entry of a direct course to any selected waypoint, streamlining your navigation process. Moreover, a conveniently accessible menu of nearest airports and flight plan waypoints facilitates easy and swift entry, making route adjustments and emergency diversions less stressful.

AUTOPILOT INTERFACE – Precise course deviation and roll steering outputs can be coupled to select autopilots, enabling virtually all IFR flight procedures to be flown automatically.
HOLDING PATTERNS – IFR pattern entries can be tricky. GTN 725Xi lets you easily create and execute holding patterns over a published or user-defined waypoint.
SEARCH AND RESCUE – For aerial surveillance, common search pattern types — including orbit, parallel line, expanding square and sector search — can be loaded into your flight plan on the GTN 725Xi navigator.
SUPPORTS VNAV AND MORE – With our GFC™ 500 and GFC 600, GTN 725Xi supports advanced modes and features such as vertical navigation profiles, radius-to-fix legs, missed approaches and more.

Specifications

TSO applicability: C74d Class A; C112e; C146e Class 3; C151d Class A, B; C157b Class 1, 2; 165b; C194; C195b Class B1, B3, B5, B7; C209
Display size: 6.9″ (175.3 mm) diagonal
Display resolution: 834 pixels (W) x 986 pixels (H)
Unit bezel height: 6.00″ (152.0 mm)
Unit bezel width: 6.25″ (159.0 mm)
Unit depth with connectors: 11.25″ (286 mm) (measured from face of aircraft panel to rear of connector backshells)
Unit weight: 5.7 lbs (2.60 kg)
Input voltage range: 11 VDC – 33 VDC
Operating temperature range: -20° C to 55° C (-4° F to 131° F)
Number of GPS channels: 15 (12 GPS and 3 GPS/WAAS/SBAS)
LAT/LON position accuracy: <1.25 meter RMS horizontal, < 2 meter vertical, with WAAS
Maximum velocity: 1,166 knots
Position update Interval: 0.2 sec (5 Hz)
